Measuring Tools

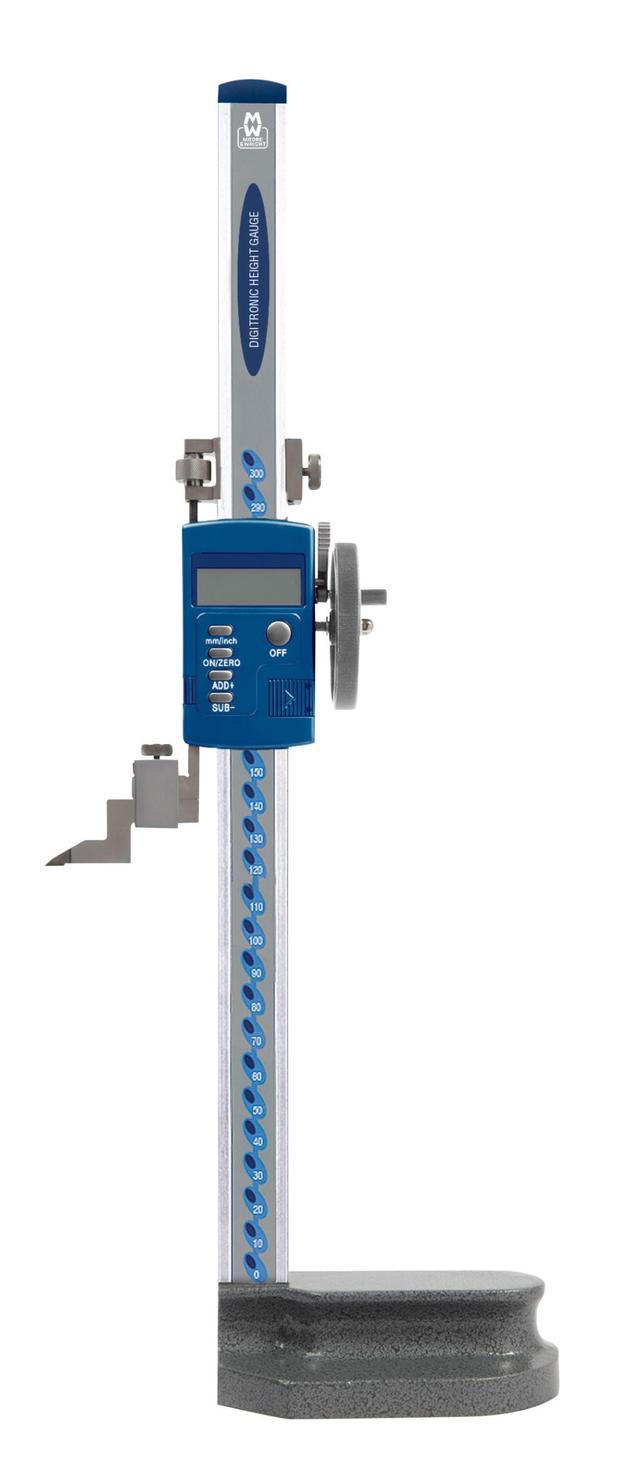

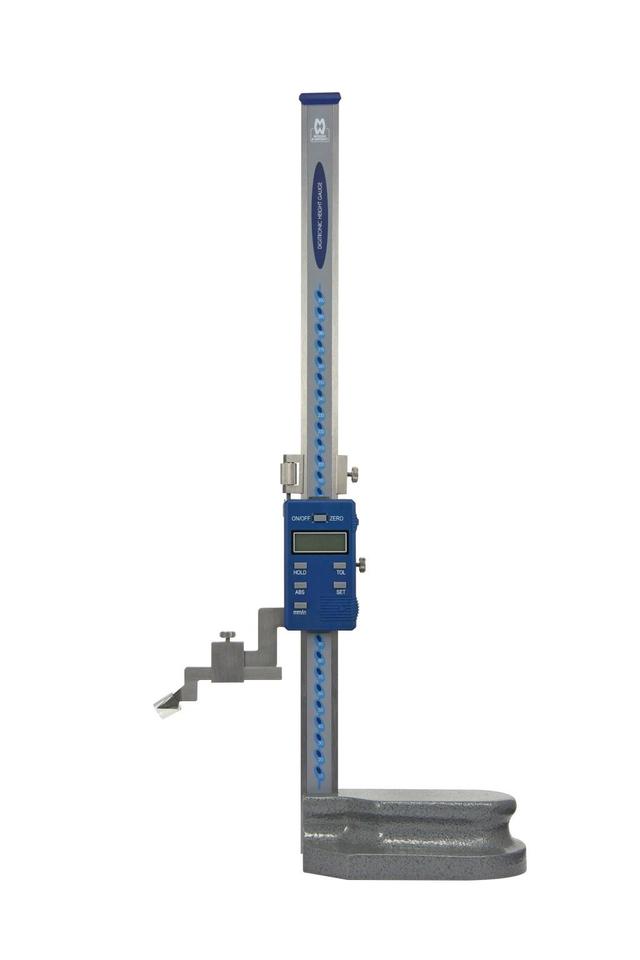

Easy to read LCD display.

• Easy to read LCD Display
• Functions: mm/inch conversion, on/off, zero setting, battery low indication
• Ground & Micro lapped measuring surfaces.
• Functions: mm/inch conversion, on/off, zero setting, preset.
• With fine adjustment.
• Supplied with carbide tipped scriber.
• Hand wheel operation with positive lock.

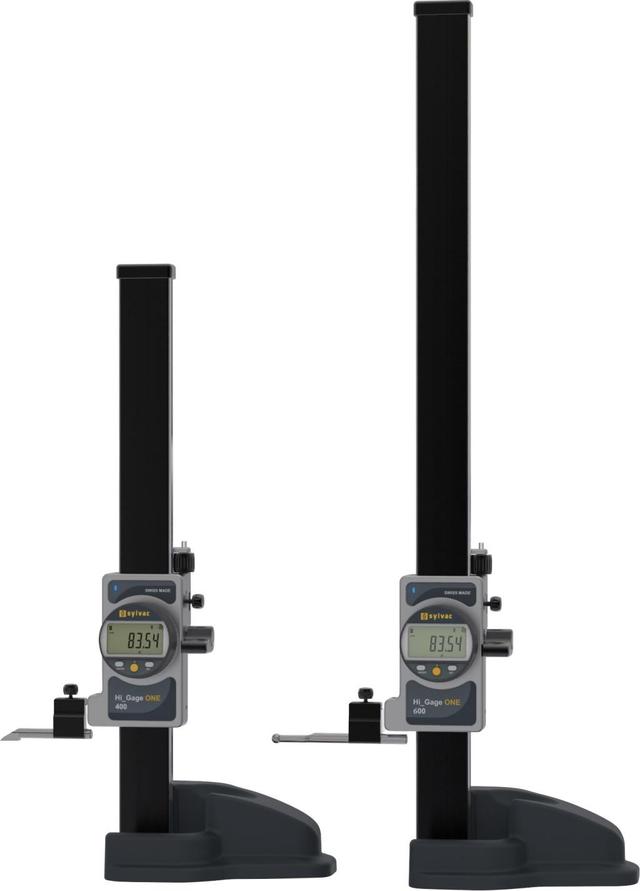

Available in 400mm and 600mm capacities, the robust new Sylvac Hi_Gage ONE Height Gauge is water and coolant resistant and designed to provide high levels of accuracy and repeatability throughout extended shop floor use.

Complies with: BS870, DIN 863/1, ISO361

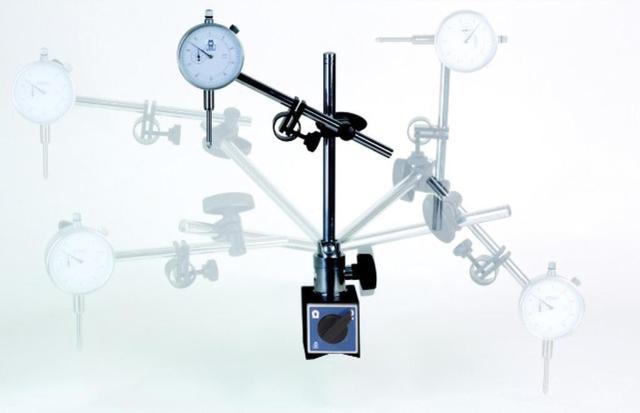

• Versatile magnetic base that can be adjusted in almost unlimited ways
• With fine adjustment
• 30kg clamp force
• V-base for mounting on rounded surfaces

• Easy to operate ultrasonic wall thickness gauge
• Standard 5 MHz transducer included, special purpose types available
• Clear 4-Digit LCD display
• Retention of last 10 readings

• Applications
• TT-100 for metal, glass, plastics etc (Standard model)
• TT-120 for high temperature steel (Up to 300ºC)
• TT-130 for metals, glass, plastics etc, 0.01mm resolution

• Standard Delivey
• Transducer 5MHz
• Transducer ZW5P (TT-120)
• Integrated steel calibration plate 4.0mm


• Ultrasonic couplant
• Operation manual
• Carrying case

• Impact device D integrated:no cables!
• Integrated impact device C featuring low impact energy for surface hardened components and thin walled components (TH-172)
• Integrated impact device DL featuring testing in confined spaces (TH-174)
• Wide measuring range.
• Direct display of hardness scales Rockwell HRB, HRC, Vickers HV, Brinell HB, Shore HS, Leebs HLD (TH-170)/Leebs HLC (TH-172)/Leebs HLDL
• For all metallic materials (TH-170), for steel and cast steel (TH-172/174), and cold work tool steel (TH-172)
• Provides testing at any angle
• Simple handling and low test expenditure
• High accuracy ±0.5%
• Clear LCD display showing all functions and parameters
• Conforms to ASTM A 956 and DIN 50156
• USB output to PC only

• Test results appear directly on the large display
• According to ASTM and DIN standard
• Display scales HV, HB, HRC, HRB, HS and conversion to tensile strength
• Highly accurate readings ± 0.5% at 800 HL
• Correction for impact direction 360 degrees
• Chargeable battery pack to ensure many hours of undisturbed testing and printing
• Direct keys for easy set up of testing parameters
• Thermal mini-printer installed on the main unit
• Ridged ABS anti-shock casing with sealed keypad
• Optional impact devices available on request.

Standard Delivery

• Main unit with impact device type D
• Printer (on top)
• Test block with HLD-value
• Charger
• Cleaning brush
• Coupling paste
• Table suuport for main unit
• Certificate
• Manual
• Plastic carrying case

Optional Accessories

• Special impact devices
• UKAS certified test blocks
• Support rings for convex and concave surfaces

Magnetic base hardness tester designed according to the principle of Rockwell hardness testing.

• The test head can be fixed to the surface of iron and steel components by magnetic force. Support to the test piece is not required as the 350kg+ magnetic base will hold the unit firmly in position.
• The testing accuracy complies to ISO 6508 or ASTM E18 and is comparable to a Rockwell bench hardness tester.
• Testing can be done regardless of the shape of the component as long as there is a flat surface for positioning of the magnetic base.
• Able to test large-size workpieces which are assembled, unable to cut or inconvenient to move such as large-size moulds, steel plates, steel tubes, steel structures, pressure vessels, metallic pipe lines or the slide ways of machine tools.

Optional Accessories

• Rockwell indenters
• Rockwell balls

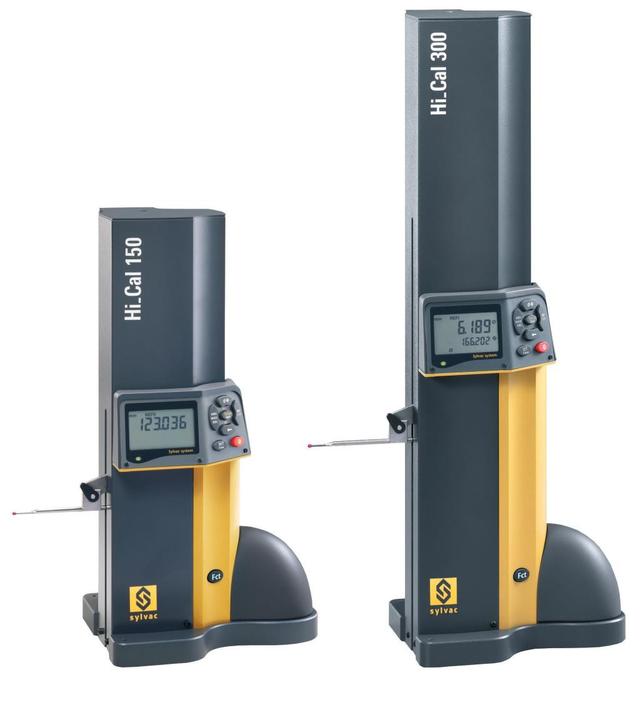

The Sylvac Hi_Cal Digital Motorised Height Gauge is perfect for a variety of measuring tasks including step heights, internal/external diameters and centre-line distances.

Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-floor bore measurement.

• Metric measurement
• Range 20-200mm
• 3 point measurement
• Graduation: 0.005mm

300mm and 600mm models supplied with dial indicator mounting feature

EMUGE Unified Coarse Go Thread Ring Gauge

• Manufactured from high quality aged gauge steel
• 6g Tolerance
• All gauges are subject to 100% inspection
• DIN 2285
• Gauges can be supplied with DakkS calibration certificates on request
• Supplied with custom markings on request

EMUGE Unified Coarse No-Go Thread Ring Gauge

• Manufactured from high quality aged gauge steel
• 6g Tolerance
• All gauges are subject to 100% inspection
• DIN2299
• Gauges can be supplied with DakkS calibration certificates on request
• Supplied with custom markings on request

Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-floor bore measurement.

Features:

• Imperial measurement
• Range 3/4-8 inch (3/4"-8")
• 3 point measurement
• Graduation: 0.005mm

The XTA Micro is a more compact mechanical controller, lighter and more ergonomically designed. The XTA Micro's Vernier scale improves resolution from 5µ to 2µ.

Features

• Vernier scale added to improve resolution from 5µ to 2µ
• Graduation: 2-6mm range - 0.001mm. 0.080”-1/4” range: 0.0001”
• Graduation: 6-20mm range - 0.002mm. 1/4”-3/4” range: 0.0001”

The XTA Micro is a more compact mechanical controller, lighter and more ergonomically designed. The XTA Micro's Vernier scale improves resolution from 5µ to 2µ.

Features

• Vernier scale added to improve resolution from 5µ to 2µ
• Graduation: 2-6mm range - 0.001mm. 0.080”-1/4” range: 0.0001”
• Graduation: 6-20mm range - 0.002mm. 1/4”-3/4” range: 0.0001”

Bowers’ XT3 digital internal micrometers offer a new ergonomic design along with IP67 electronics protection, proximity output with built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage.

Features

• New ergonomic design with larger and clearer LCD display
• IP67 electronics
• Simple 2-button operation
• Proximity output with optional built-in Bluetooth

Bowers’ XT3 digital internal micrometers offer a new ergonomic design along with IP67 electronics protection, proximity output with built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage.

Features

• New ergonomic design with larger and clearer LCD display
• IP67 Electronics
• Simple 2-button operation
• Proximity output with optional built-in Bluetooth

Bowers XT setting rings - Metric
